The 1571P Series High Speed Rate Table Systems are designed to provide a precision high velocity testing solution for the development and/or production testing of inertial packages or their components.

A typical application is for missile or projectile programs. The 1571P test table is a servo-controlled system featuring a direct-drive DC brushless motor, precision optical encoder and a microprocessor that provides accurate and reliable motion control.

The table can be operated from the AERO 4000 Controller front panel for local control or through a computer interface for remote control.

Features of the 1571P

  • Position Accuracy: ±10 arc sec
  • Rate Accuracy: 0.01% ± Resolution
  • Maximum Rate: 18,000 deg/sec (50 Hz)
  • Direct-drive, DC brushless servo system
  • Aerodynamic/safety enclosure around tabletop
  • Precision-ground anodized aluminum tabletop
  • 10 to 24 inch diameter tabletop options
  • Fail-safe brake
  • 48 slipring lines
  • Electronics Console for AERO 4000 Controller and Servo Amplifiers

EASE OF INTEGRATION

  • LabVIEWTM Virtual Instrument (.vi) driver included
  • GPIB and 100base-T Ethernet interfaces standard
  • Available control languages: ATL (Aerosmith Table Language) and MPACS (Legacy Carco and Contraves Controllers)

Options of the 1571P

  • Integral Thermal Chamber with electric heating and LN2 or CO2.
    Testing range: -65 to 150 deg C.
  • Various Tabletop sizes
  • Custom slip package
  • Drive assembly available separately as a spin fixture or as a “roll drive” for use on existing tables
  • Horizontal axis configuration

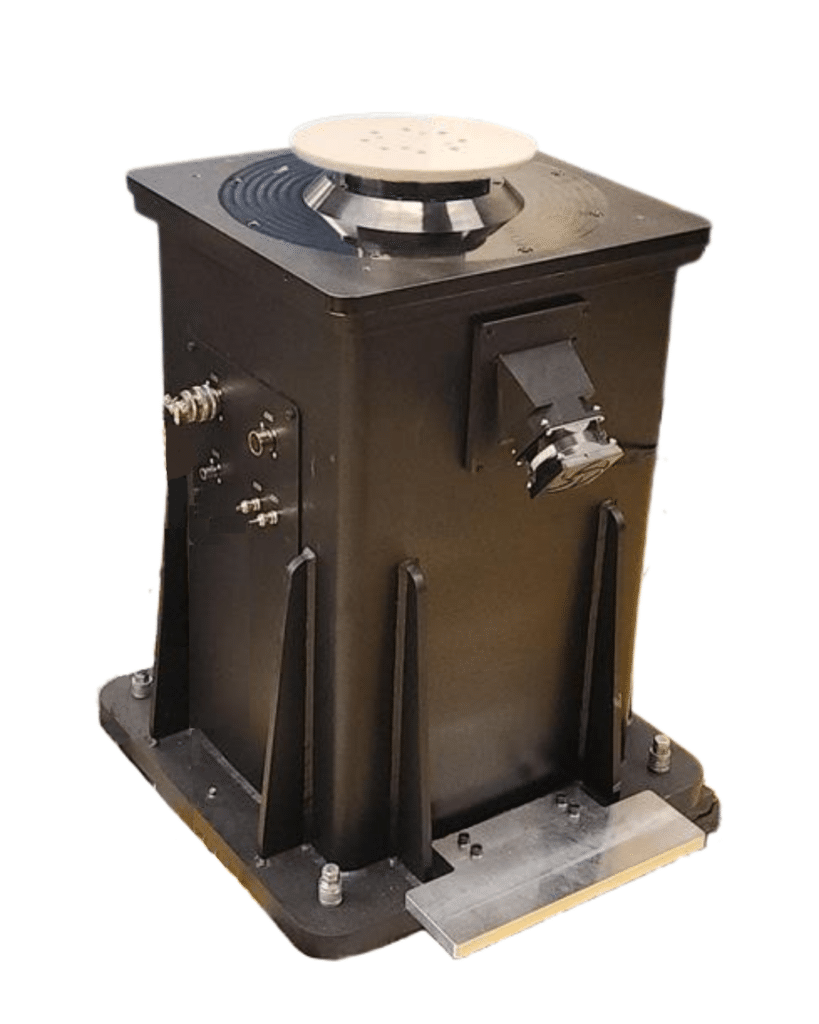

Ideal Aerosmith's 1571P Single Axis High Speed Position and Rate Table System (with optional thermal chamber)
