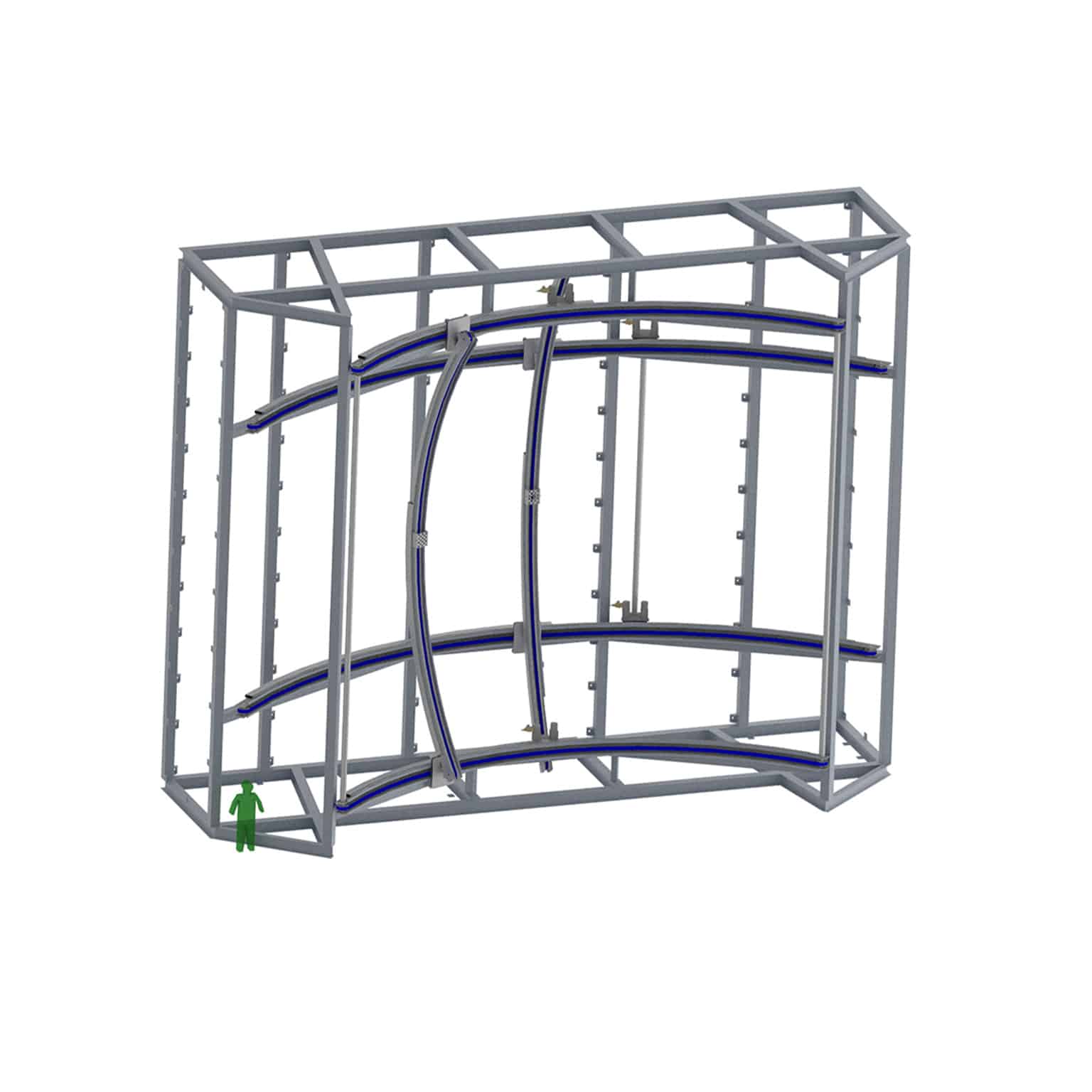

HWIL testing typically requires the implementation of a multi-target motion simulator such as the Ideal Aerosmith Model 244SE-10.

HWIL testing typically requires the implementation of a two-axis target motion simulator such as the Ideal Aerosmith Model 2452H. This system is configured with hydraulic actuator drives to ensure operational and performance compatibility with Ideal Aerosmith’s Model 2453H-ER Three-Axis Hydraulic Flight Motion Simulator (FMS).

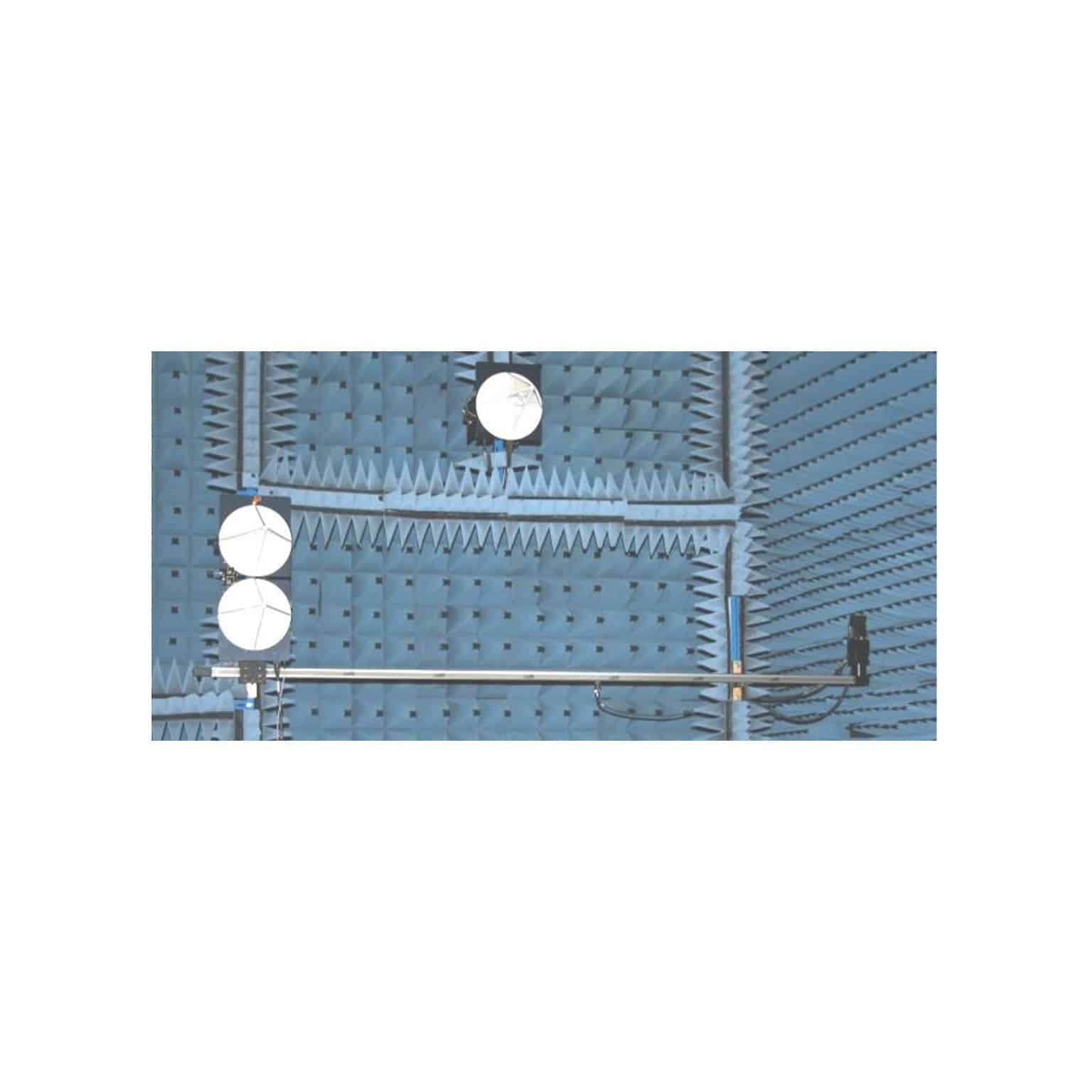

The 242E system consists of a small payload platform which rides on an X-Y Target Motion Simulator (TMS). The X- and Y-axes have a ± 60-inch useful range of motion and the TMS resides at one end of an anechoic chamber. An additional positioning system or flight motion simulator resides at the opposite end of the anechoic chamber.
