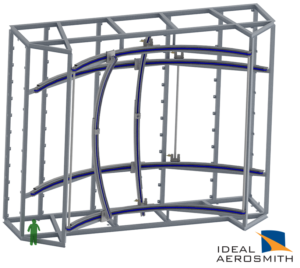

HWIL testing typically requires the implementation of a multi-target motion simulator such as the Ideal Aerosmith Model 244SE-10. The Target Motion Simulator (TMS) is housed in an anechoic RF chamber and anchored to a rigid wall or equivalent structure.  An Ideal Aerosmith Three-Axis FMS is mounted on a track assembly at the opposite end of the chamber so that FMS may be withdrawn from the chamber port for missile seeker installation, setup and servicing.

The TMS moves a front payload (RF source, target) through a spherically-curved locus of 10 m radius originating on the FMS axis intersection such that the payload remains pointed at this intersection.  The TMS independently moves a rear payload through a similarly oriented spherically-curved locus of 11.6 m radius.

Features of the 244SE-10


  • Front and Rear Payload: 40 Kg each
  • Pointing Accuracy: 0.05 deg
  • Maximum Velocity: 20 deg/sec
  • Track Radius: Front 10M; Rear 11.6M
  • Axis Travel: Front ±30deg; Rear ±25 deg
  • Axis Acceleration: 40°/s2
  • Position Bandwidth: 5 Hz
  • Rack-mounted AERO4000™ Digital Controller
    • Front panel display of status and data
    • Local and remote operation
    • Trapezoidal velocity profiles (in rate mode) with programmable velocity and acceleration
    • Sinusoidal motion generator, with programmable amplitude and frequency
    • Profile mode for position, velocity, and flight (PVA) commands
    • Programmable analog inputs and outputs

Options of the 244SE-10

  • Custom target payload interfaces
  • Axis Travels and Track Radii designed to meet specific test requirements
  • Hydraulic or electric motor drive assemblies
  • SCRAMNet or VMIC shared-memory interfaces
  • Various wire-wrap configurations for cables
  • Custom dynamic performance characteristics
