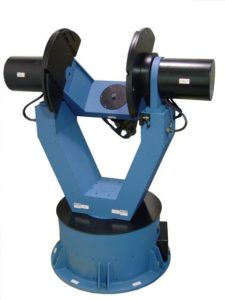

The 1583P Three-axis Positioning and Rate Table System is optimized to provide high dynamic Hardware In the Loop (HWIL) testing for smart weapons technology.

The 1583P Test Table is a servo-controlled system that features direct-drive DC brushless motors, precision optical encoders, and a microprocessor that provides accurate and reliable motion control. The table can be operated from the AERO 4000 Controller for local control or through a computer interface for remote control. This test table system is designed for ease of operation and is programmed with the Ideal Aerosmith Table Language (ATL) for remote operation. The AERO 4000 Controller comes standard with IEEE-488, RS-232, and Ethernet remote host interface.

Features of the 1583P

  • Position Accuracy: ±15 arc sec
  • Rate Accuracy: ±0.001%
  • Roll axis rates up to 50 Hz (3000 RPM)
  • Direct-drive, DC brushless servo system
  • Precision-ground 10 inch diameter tabletop
  • Fail-safe brakes
  • AERO 4000 Controller
  • 2.5 kHz Servo update rate
  • Front panel display of status and data
  • Local and remote operation
  • User-friendly Ideal Aerosmith Table Language (ATL)
  • Trapezoidal velocity profiles with programmable velocity and acceleration
  • Sinusoidal motion profiles with programmable amplitude and frequency
  • Position Profile, Velocity Profile and Flight Profile Modes for simulating complex motion profiles
  • Analog position and velocity input
  • Analog velocity output

Options of the 1583P

  • Various slipring packages or wire wrap configurations
  • For special requirements, please contact Ideal Aerosmith regarding system customization.
