The Ideal Aerosmith Trip Guardian™ 2203-TH-NM Automated Three-Axis, Non-Magnetic Positioning Table System is intended for use in calibration and verification of MWD downhole directional instruments, including magnetometers, gyroscopes, and accelerometers.

Constructed of aluminum, brass, and phenolic, the 2203-TH-NM is a limited rotation system with ±30 arc second position accuracy. It has three orthogonal axes to enable instrument placement in various orientations. The table features servo controlled drive packs, controlled using a front panel touchscreen or remotely via host PC. An intregal thermal chamber provides testing and calibration at elevated temperatures and comes with the Ideal Aerosmith Air Amplifier kit for faster cooling of the device under test (DUT) and chamber.

Features of the 2203-TH-NM

  • Limited rotation on all three axes
  • ±30 arc second position accuracy
  • Thermal chamber and controller
  • AERO 3500 Commander controller
  • Air amplifier for cooling the DUT
  • Temperature range ambient to 225°C

Options of the 2203-TH-NM

  • Customizable design
  • Custom fixtures for mounting DUT
  • Customized turn-key solutions
  • Professional installation

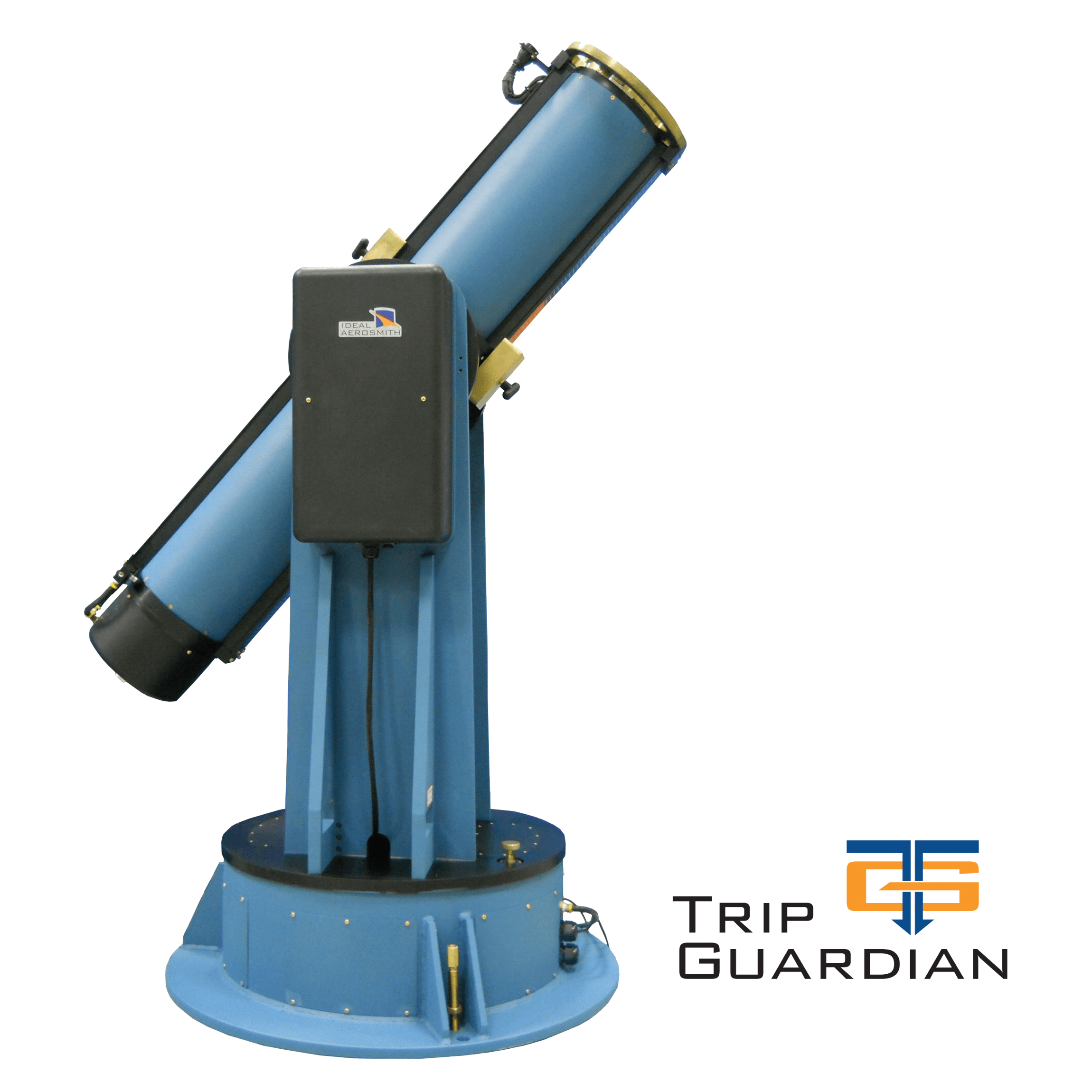

Ideal Aerosmith's Trip Guardian 2203-TH-NM
