The 1573P Series Automatic Positioning and Rate Table Systems are designed to provide precise position, rate and acceleration motion for the development and/or production testing of inertial packages and their components.

The 1573P Series test tables are servo-controlled systems that feature direct-drive DC brushless motors, precision optical encoders and a microprocessor that provides accurate and reliable motion control. The table can be operated from the AERO Controller front panel for local control or through a computer interface for remote control.

This test table system is designed for ease of operation and is programmed with the Ideal Aerosmith Table Language (ATL) for remote operation.

Features of the 1573P

  • Position Accuracy:
    • Model 1573P10: ±10 arc sec
    • Model 1573P20: ±20 arc sec
  • Rate Accuracy: ±0.001% ± Resolution
  • Direct-drive, DC brushless servo system
  • 24-inch diameter tabletop
  • Fail-safe brakes
  • Available with slip ring package for unlimited rotation or a wire wrap design for a limited rotation system

Options of the 1573P

Related Products

Ideal Aerosmith 2003HP Rate Table System
2003HP Three-Axis Precision Motion Simulation Table System
1 Arc Sec +/-
18 to 32 inch diameter
Ideal Aerosmith's 1583G is optimized to provide high dynamic Hardware In the Loop (HWIL) testing for smart weapons technology.
1583 Three-Axis Positioning and Rate Table System
30 Arc Sec +/-
10 inch diameter
The 2103HTC by Ideal Aerosmith provides precise position, rate, and acceleration motion for development or production testing of military and commercial antenna stabilization systems.
2103HTC Three-Axis Positioning and Rate Table
15 Arc Sec +/-
10 or 14 inch diameter

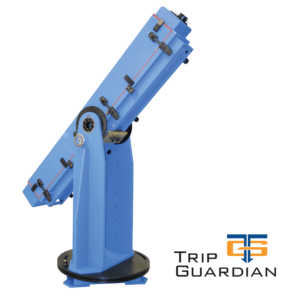

The 1503-TS-SPL by Ideal Aerosmith is designed to test instruments using the “Total Field Calibration” method.
