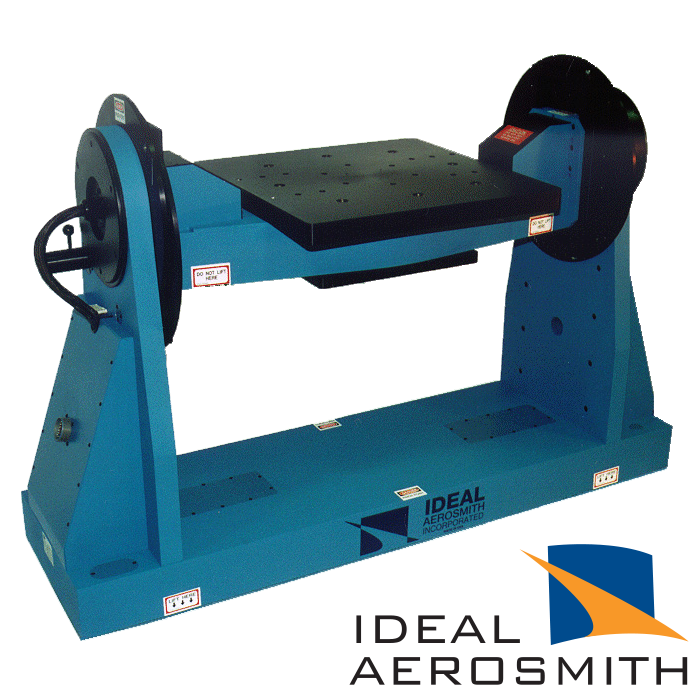

Ideal Aerosmith’s Model 1501T is a single-axis manual tilt table. Designed for testing an IMU (Inertial Measurement Unit), this system supports the IMU on the upper mounting surface and additional electronics on the lower mounting surface. The lower mounting surface helps to counterbalance the IMU and minimizes the counterweights required. The system provides optical access to the IMU mirror at the specified heights.

Features of the 1501T

  • Manually operated horizontal tilt axis
  • Position Accuracy: ± 10 Arc-Sec
  • Position Repeatability: ± 5 Arc-Sec
  • Precision-ground anodized aluminum tabletop
  • 35 line user signal

Options of the 1501T

  • A variety of user cable configurations
  • Various connectors for user signals
  • Various tabletop sizes
  • Temperature Chambers for environmental testing
  • For special requirements, accuracies or custom specifications, please contact Ideal Aerosmith, Inc.
