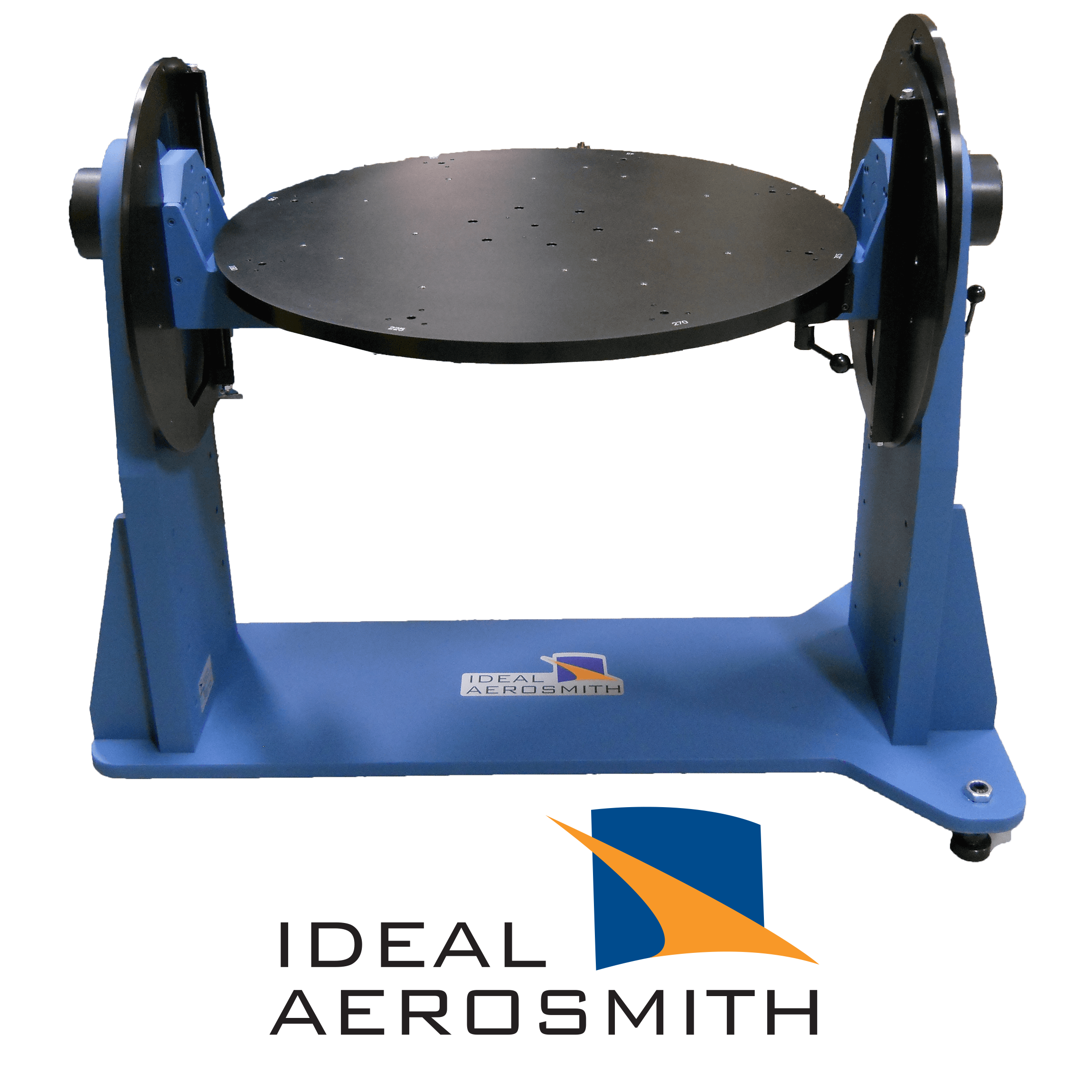

Ideal Aerosmith 1502B-32 Manual Positioning Table
1502B-32 Two-Axis Manual Positioning Table Data Sheet

The Model 1502B-32 Manual Positioning Table is designed to provide precise position for the development and/or production testing of navigation sensor systems. The 1502B-32 system may be integrated with a customer developed test station and it may be used to test single or multiple test articles at any given time.

Features of the 1502B-32 Two-Axis Manual Positioning Table

  • Manually-operated horizontal tilt and azimuth axis
  • Position Accuracy: ± 6 arc minutes
  • Position Repeatability: ± 30 arc sec
  • 32-inch table top
  • Manual shot pins for locking table into position

Options of the 1502B-32 Two-Axis Manual Positioning Table

  • A variety of user cable configurations
  • Various connectors for user signals
  • Various tabletop sizes
  • Temperature Chambers for environmental testing
  • For special requirements, accuracies or custom specifications, please contact Ideal Aerosmith, Inc.
