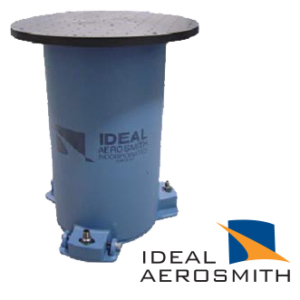

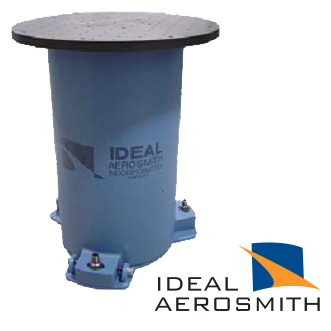

Ideal Aerosmith 1501-24-S45 Manual Positioning Table
1501-24-S45 Data Sheet

The Model 1501 Test Table is a single-axis manual positioning table used to provide positioning indexes for inertial guidance systems for the purposes of calibration and acceptance testing. The table is moved by hand to the desired position and a shot pin is engaged to hold the table’s position. A bolt hole pattern is provided on the table top so that a user mounting can be fastened down easily.

Features of the 1501-24-S45

  • Manually-operated horizontal tilt and azimuth axis
  • Position Accuracy: ± 6 arc minutes
  • Position Repeatability: ± 30 arc sec
  • 32-inch table top
  • Manual shot pins for locking table into position

Other Manual Positioning Tables

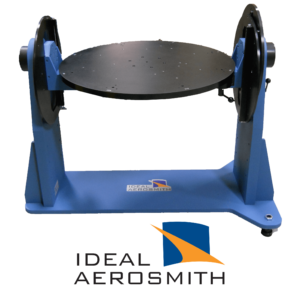

Ideal Aerosmith 1502B-32 Manual Positioning Table
1502B-32 Two-Axis Manual Positioning Table
6+/- arc minute
32 inch diameter
Ideal Aerosmith 1501T Manual Positioning Table
1501T Single-Axis Manual Positioning Table
10 +/- arc second
24 inch x 24 inch

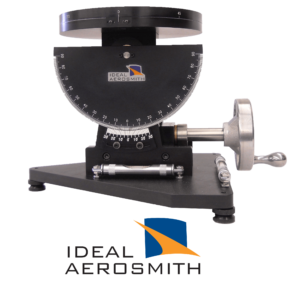

Ideal Aerosmith - Model 1310 Manual Positioning Table
1310-L Manual Tilt & Turn Table
3 +/- arc minute
8 inch diameter

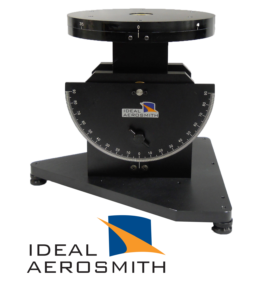

Ideal Aerosmith Model 1300 Manual Positioning Table
1300 Manual Tilt & Turn Table
6 +/- arc minute
8 inch diameter

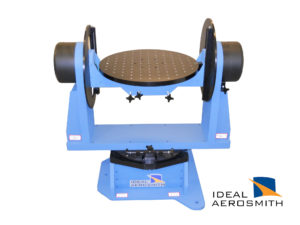

1503-24-EN Three-Axis Manual Positioning Table
1+/- arc minute
24-inch diameter
