The 2455H-ER extends the capabilities of Ideal’s three-axis FMS systems for hardware-in-the-loop (HWIL) seeker/guidance testing, to include target motion simulation. The inner target axis can accommodate an infra-red scene projector. Extremely efficient hydraulic actuators allow high system utilization – such as Monte Carlo-type test scenarios – on a time-continuous basis.

As with our three-axis FMS systems, Ideal’s flexible AERO 4000 Controller affords real-time motion control via several industry-standard high-speed interfaces.

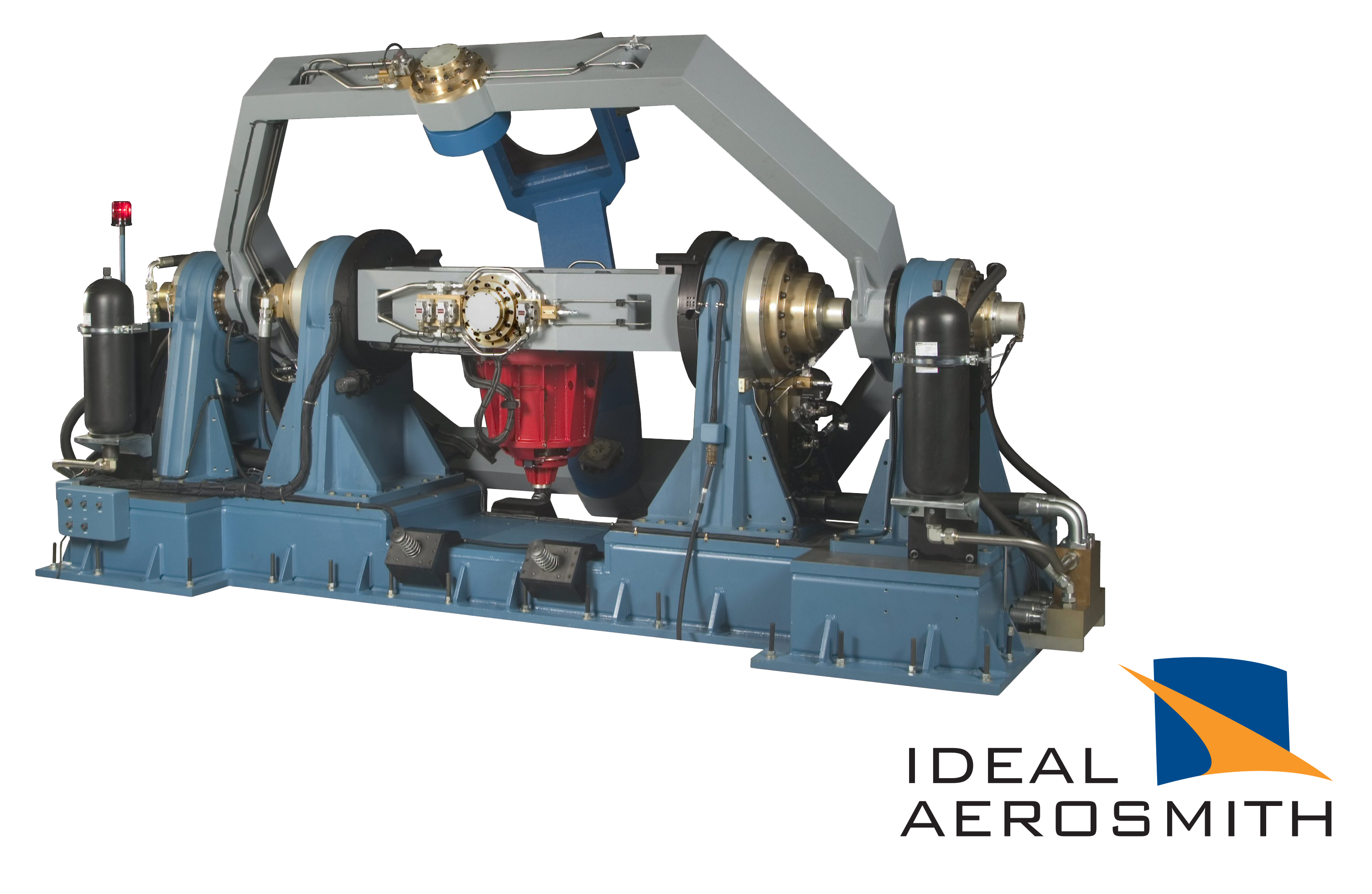

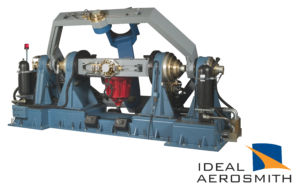

The 2455H-ER features a direct-drive DC brushless motor for the innermost (Roll) axis, highperformance hydraulic vane actuators on the remaining four axes, and precision optical encoders on all axes. The AERO 4000 digital signal processor-based (DSP) controller provides accurate and reliable motion control.

The user can operate the FMS from the AERO 4000 Graphic User Interface for local control, or remotely via a computer interface. It affords easy operation, and can accommodate the Ideal Aerosmith Table Language (ATL) for remote operation. The AERO 4000 controller comes standard with IEEE-488, RS-232, and Ethernet communication interfaces.

Features of the 2455H-ER

  • Position Accuracy: ±10 arc sec
  • Inter-axis Orthogonality: 30 arc sec
  • Axes intersection: ±0.02” (±0.5mm)
  • Rate Accuracy: ±0.01%
  • Roll axis rates up to 20 Hz (1200 RPM)
  • Rack-mounted AERO 4000 Digital Controller
    • Front panel display of status and data
    • Local and remote operation
    • Trapezoidal velocity profiles (in rate mode) with programmable velocity and acceleration
    • Sinusoidal motion generator, with programmable amplitude and frequency
    • Profile mode for position, velocity, and flight (PVA) commands
    • Programmable analog inputs and outputs

Options of the 2455H-ER

  • Various slip ring packages or wire wrap configurations
  • Systran Corporation SCRAMNet or VMIC shared-memory interfaces

Related Products

Ideal Aerosmith's 2453H-ER features a direct-drive DC brushless motor.

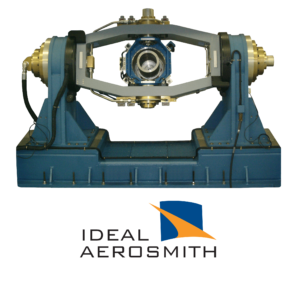

2453H-ER Three-Axis Electro-Hydraulic Flight Motion Simulator
