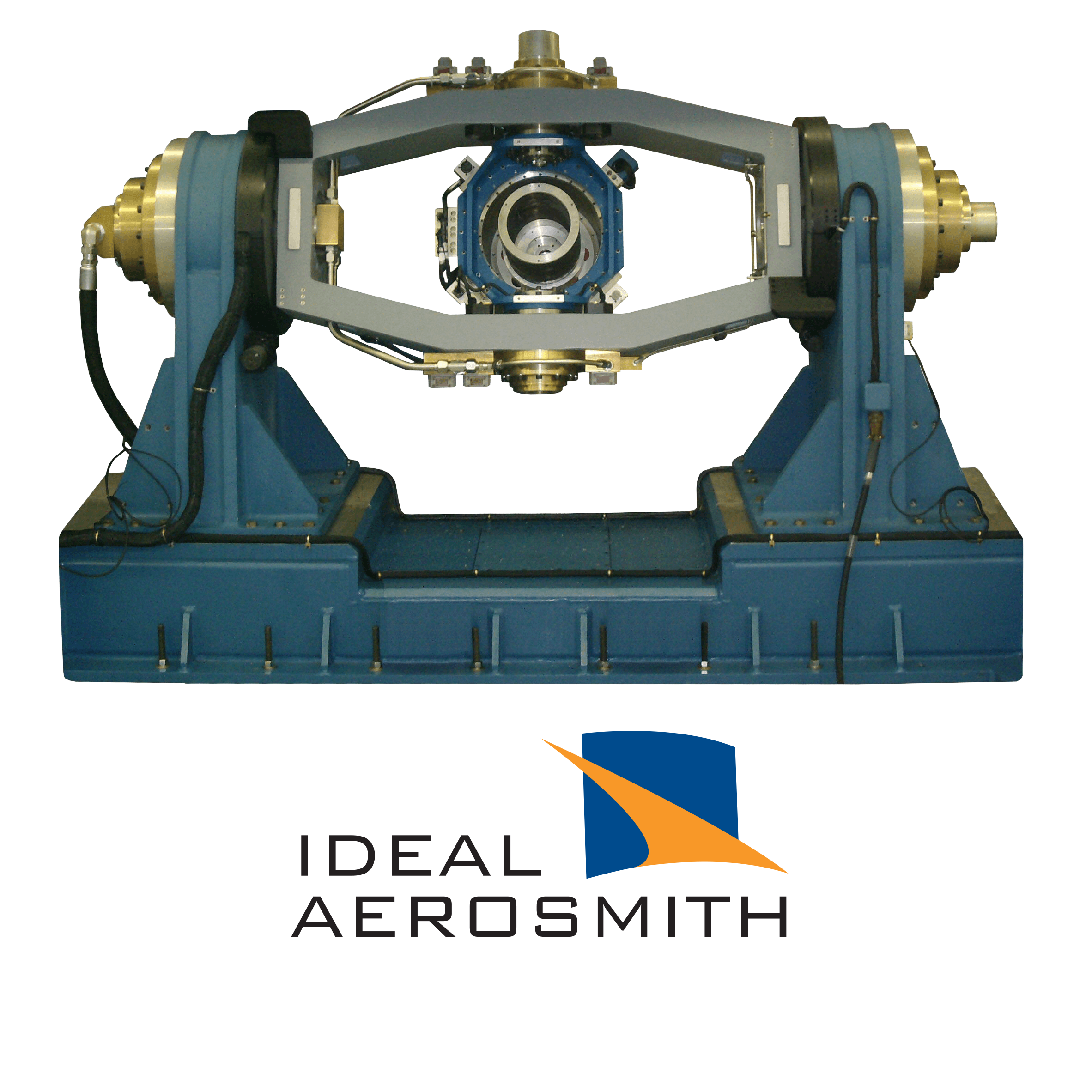

The 2453H-ER is Ideal Aerosmith’s base model Three-Axis Flight Motion Simulator for Hardware-InThe-Loop (HWIL) Seeker Guidance Testing.

Extremely efficient hydraulic actuators allow high system utilization – such as Monte Carlo-type test scenarios – on a time-continuous basis. As with our three-axis FMS systems, Ideal’s flexible AERO 4000 Controller affords real-time motion control via several industry-standard high-speed interfaces.

The 2453H-ER features a direct-drive DC brushless motor for the innermost (roll) axis, high-performance hydraulic vane actuators on the Pitch and Yaw axes, and precision optical encoders on all axes. The AERO 4000 digital signal processorsbased (DSP) controller provides accurate and reliable motion control. The user can operate the FMS from the AERO 4000 Graphic User Interface for local control, or remotely via a computer interface. It affords easy operation, and can accommodate the Ideal Aerosmith Table Language (ATL) for remote operation. The AERO 4000 controller comes standard with IEEE-488, RS-232, and Ethernet communication interfaces.

Features of the 2453H-ER

  • Position Accuracy: ±10 arc sec
  • Inter-axis Orthogonality: 30 arc sec
  • Axes intersection: ±0.02” (±0.5mm)
  • Rate Accuracy: ±0.01%
  • Roll axis rates up to 20 Hz (1200 RPM)
  • Rack-mounted AERO 4000 Digital Controller
    • Front panel display of status and data
    • Local and remote operation
    • Trapezoidal velocity profiles (in rate mode) with programmable velocity and acceleration
    • Sinusoidal motion generator, with programmable amplitude and frequency
    • Profile mode for position, velocity, and flight (PVA) commands
    • Programmable analog inputs and outputs

Options of the 2453H-ER

  • Various slipring packages or wire wrap configurations
  • Systran Corporation SCRAMNet or VMIC shared-memory interfaces
