The 1572P Series Automatic Positioning and Rate Table Systems are designed to provide precise position, rate and acceleration motion for the development and/or production testing of inertial packages and their components.

The 1572 Series test tables are servo-controlled systems that feature direct-drive DC brushless motors, precision optical encoders and a microprocessor that provides accurate and reliable motion control. The table can be operated from the AERO Controller front panel for local control or through a computer interface for remote control.

This test table system is designed for ease of operation and is programmed with the Ideal Aerosmith Table Language (ATL) for remote operation.

Features of the 1572P

  • Position Accuracy:
    • Model 1572P15: ±15 arc sec
    • Model 1572P8: ±8 arc sec
  • Rate Accuracy: ±0.001% ± Resolution
  • Direct-drive, DC brushless servo system
  • 24-inch diameter tabletop
  • Fail-safe brakes
  • Available with slip ring package for unlimited rotation or a wire wrap design for a limited rotation system
  • Electronics Console for AERO 4000 Controller and Servo Amplifiers

Options of the 1572P

  • Integral Thermal Chamber
  • Various slipring packages or wire wrap configurations
  • 18 to 32-inch diameter Tabletops
  • High-speed inner or outer axis
  • Gigabit Ethernet, RF or Fiber Optic lines to the tabletop

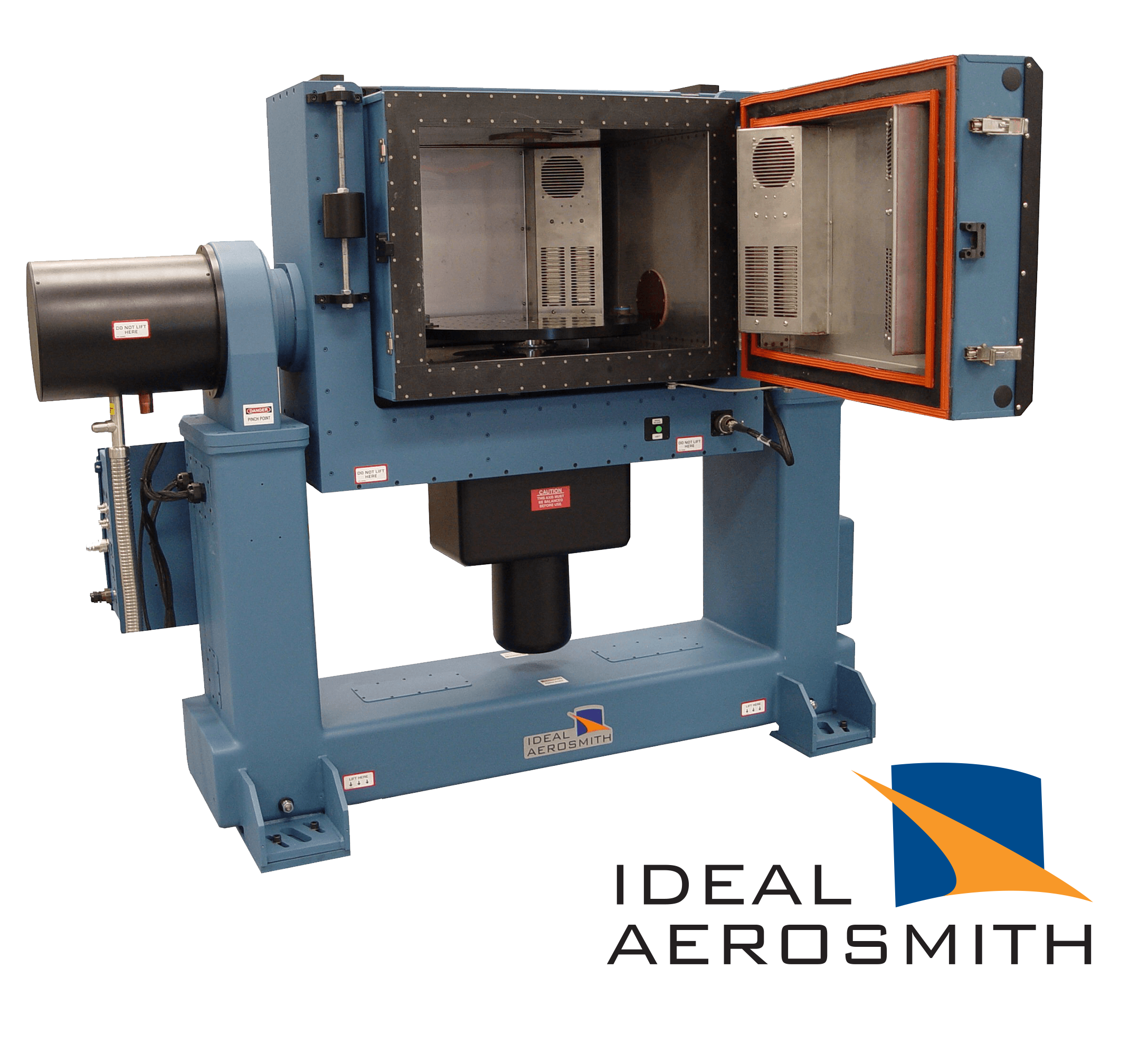

The 1572P Two Axis Positioning and Rate Table System from Ideal Aerosmith
