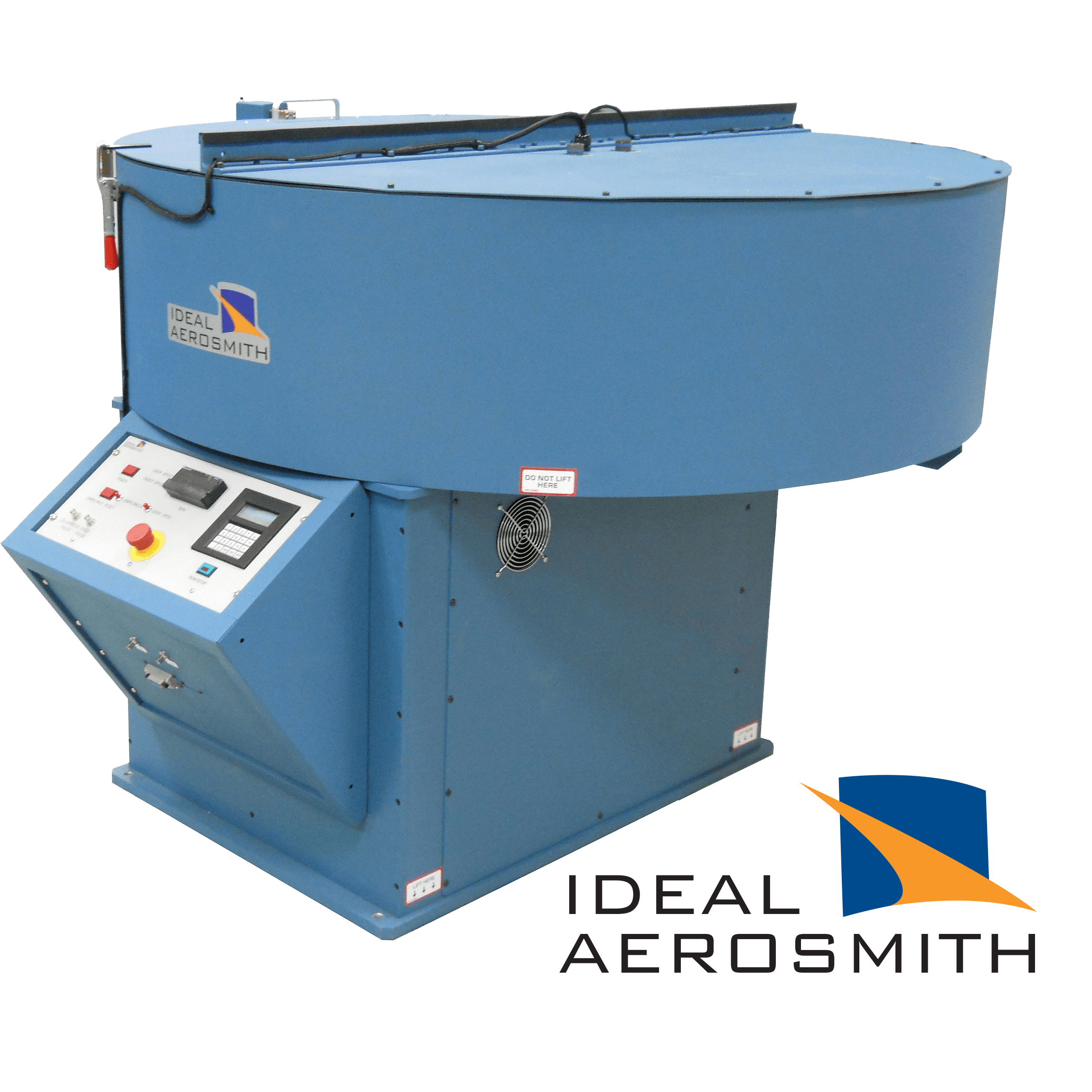

The Ideal Aerosmith 1068-1 is designed to apply a large centrifugal force to a payload. While this can also be accomplished with a single-axis motion simulation table system, a centrifuge is typically required for applications with larger payloads, and/or higher G requirements. The 1068-1 tests from 0 to 100 G’s at a 22-inch (559 mm) radius. Payload capacity is a 12 inch cube (305 mm) at 50 lbs. (22.67 Kg) per end of arm.

Ideal Aerosmith centrifuge solutions are used in many industries, including aerospace, automotive, geo-technical and the military. Often this is in the qualification testing of accelerometers, inertial packages or safe-arming devices (fuzes).

Features of the 1068-1

  • G-Range: 0 to 100 G’s at 22-inch (559 mm) radius
  • Maximum G-lbs: 5000 G-lbs
  • Payload Capacity: 12 inch cube, (305 mm); 50 lbs. (22.67 Kg) per end of arm
  • Rate Range: 0-400 RPM
  • Slip Rings: Standard package is 8 lines at 5A, shielded
  • User Connectors: Arm: MS27656T17F35S and MS27656T17F35SA,  Enclosure: MS27656T17F35P and MS27656T17F35PA
  • Display: Digital Readout with resolution of XXX.XX
  • Control: Digital, closed loop controller with keypad
  • Communication Interface: RS-232
  • Testing Radius: UUT location is adjustable within mounting platform, 15- 27 inches (381-686 mm)
  • Axis Rate Accuracy: ±0.1% of operating rate (40 – 400 RPM).
  • Stability: ±0.1% of operating rate (40 – 400 RPM)
  • Speed Indication Accuracy: 0.01% ± 0.02 RPM (includes meter and encoder error)
  • Vibration Isolation: Less than 0.1 G from 0.5 – 100 Hz Bi-Axial measured at UUT Mounting Platform
  • Mounting Platform: 12 inch deep by 14.75 inch wide (305 x 375 mm) specimen mounting platform at each end of arm
  • Drive System: 1 H.P. D.C. variable speed motor-SCR controller with armature feedback, current limit, and automatic circuit protection
  • Power: 230 VAC ±10%, 50/60 Hz, single phase, 15A (FLA), 20A Fuse, SCCR 10kA
  • Dimensions: 62.9 W x 66.8 D x 47.5 H inches (1598 x 1697 x 1207 mm)
  • Weight: 1000 lbs. (454 Kg)
  • Other Standard Features: 6000 pulse per revolution encoder; Unbalance Sensor provides automatic machine shut down in event of unbalanced loads; Electrical Door Interlocks prevent enclosure from being opened while machine is in motion; leveling kit; Dynamic Braking System; Over-Under Speed Indicator



Options of the 1068-1

  • Additional slip ring lines
  • IEEE-488 Communication Interface (replaces RS-232)
  • Camera viewing system
  • Fluid transfer joint
  • Coaxial rotary joint
  • Larger arms available
  • Positionable platforms
