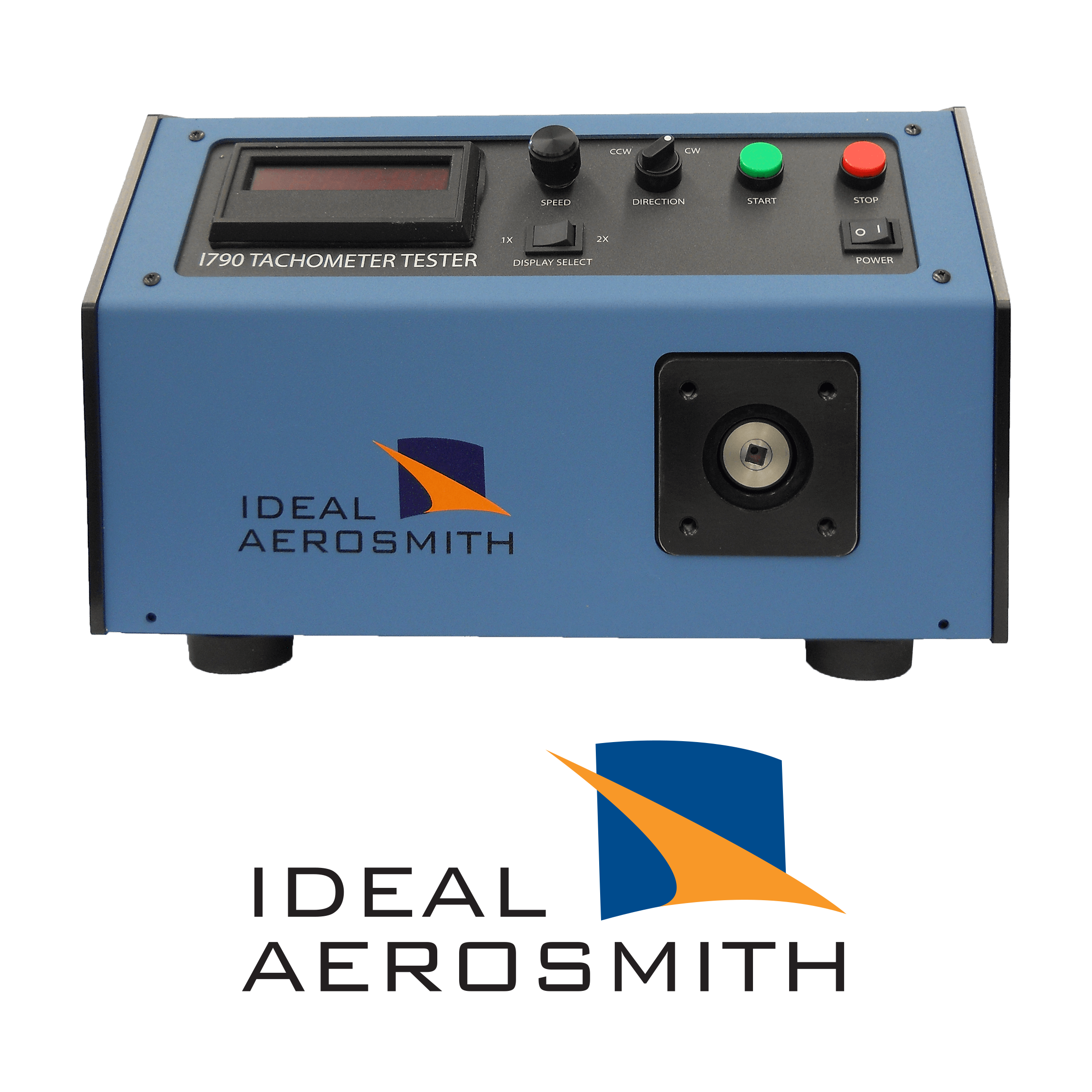

The Model 1790 Tachometer Tester test instrument is used for testing and calibration of electrical and mechanical tachometer generators and indicators. A high-quality DC motor is coupled directly to a 1/4-inch square hole drive (AN Pad). This tachometer tester output can be converted to a wide variety of adapters and different tachometer interfaces. The motor drive control circuit uses SCR components and an open-loop system for an economical solution to speed adjustment. The control panel consists of a five-digit LED display, momentary switches for start and stop, a direction switch, a display select switch, and a 10-turn potentiometer for speed adjustment.
