From Signature Resistors to Smart ID Tags
The Challenge
In aerospace and defense testing, flawless execution begins long before the first measurement is taken. One of the most time‑consuming – and error‑prone – steps is verifying that the correct test adapter cables are selected and connected properly. Traditionally, this verification relies on “signature resistors” embedded in the cable connectors. While workable, this approach carries several drawbacks:
- The resistors must be accessible to an ATE instrument – usually a DMM – consuming valuable switching and cabling resources.
- To conserve resources, these resistors are often measured in 2‑wire mode, where wiring and switching resistance reduce accuracy and limit the number of usable signature values.
- Encoding more than a cable’s part number becomes impractical, leading to an explosion of required resistor combinations.
- Tracking connector mating cycles typically depends on centralized databases – an issue for air‑gapped test environments where manual processes must be used instead.
The Solution - Smart ID Tags
To address these challenges, Ideal Aerosmith developed the Smart ID Tag – a tiny, cryptographically secure device measuring just 3 mm × 12 mm (see Figure 1). Despite its small size and only two terminals, it transforms how test adapter cables are identified and managed.

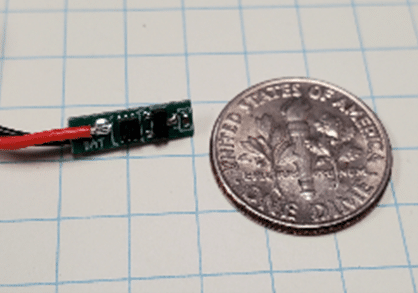

Figure 1. Smart ID Tag and a US dime coin.
Smart ID Tags store everything needed for quick, authoritative verification:
- Cable part number, serial number, connector reference designator, and user‑defined data such as tare or calibration values.
- A secure, non-resettable “odometer” that tracks mating cycles. When the cycle count reaches a programmable limit, operators receive automatic maintenance prompts. Thresholds can be adjusted after inspection.
- Globally unique serial numbers for organizations with strict traceability requirements.
The Smart ID Tags are complemented by intelligent controllers for a smarter workflow. The purpose-built Smart ID Tag controllers – compact devices that can read and manage multiple tags – simplify integration into existing ATE systems (see Figure 2). Multiple controllers can be daisy‑chained within and between ATE cabinets, all communicating through a single serial interface. This design eliminates the resource waste inherent in the legacy resistor method.
Figure 2. Smart ID Tag controller and a US dime coin.
.
Beyond identification, the controllers enhance operator guidance with intuitive visual cues (see Figure 3):
- Blinking green: plug a connector here next
- Solid green: correct connector, correct location
- Solid red: incorrect connector or wrong location

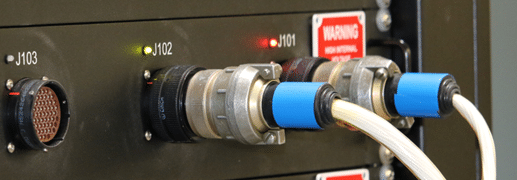

Figure 3. Visual prompts for the operator.
These visual prompts reduce setup time, prevent errors, and improve productivity.
The Outcomes
Smart ID Tags and their controllers deliver a modern, robust solution for complex test environments:
- Reduce wasted ATE resources by eliminating dedicated DMM measurements and minimizing connector pin usage. One terminal can even attach to chassis ground.
- Remove the need for switching or signature resistor schemes.
- Simplify ATE wiring through controller daisy‑chaining.
- Enable fully self‑contained mating cycle tracking with no dependency on external databases.
The result: a streamlined, reliable, and secure approach to test setup verification – purpose‑built for the demanding needs of aerospace and defense applications.
